How do you wire a wall light switch to this timer?

[shadow]

Saan i-tapped yun 2 wires na lumabas sa wall?




Sent from my iPhone using Tapatalk

[CVT]

Saan i-tapped yun 2 wires na lumabas sa wall?




Sent from my iPhone using Tapatalk

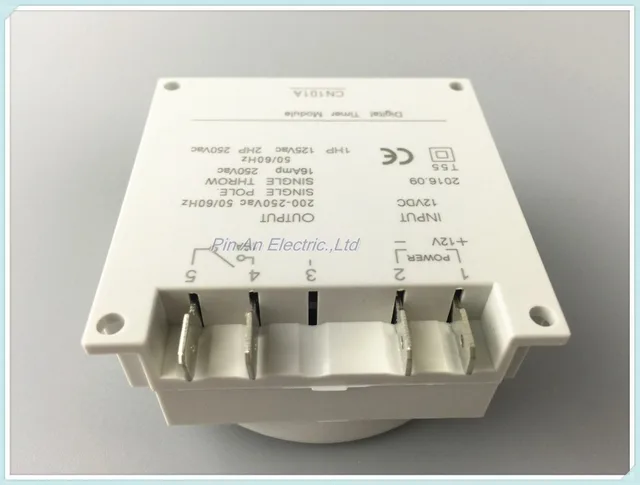

1 2 for the power... DC12V so take note of the polarity
4 5 switch - AC load - only one line...

Cut one line and connect them in 4 5

Do not cut the second line.

[shadow]

1 2 for the power
4 5 switch

So doon sa "Power" i-tapped? Tapos ang maging switch itong timer na? If i want to used the existing switch I tap mag jumper na lang ng two wire para doon sa "switch"?

Baka sumabog nanaman parang yun outlet sa Kitchen dati. [emoji23] patay nanaman ako.


Sent from my iPhone using Tapatalk

[shadow]

1 2 for the power... DC12V so take note of the polarity
4 5 switch - AC load

AC yan ibang Picture lang na post ko


Sent from my iPhone using Tapatalk

[shadow]

Disregard the photos in my first post.



Saan i connect yun dalawang wires coming out from the wall? Doon sa "Power" or isang wire sa "Power" then isang wire sa "switch"?

*cvt dito ka reply.

Wala naman mangyayari diba kahit madikit ko yun wires ng switch iilaw lang siya unlike wires ng outlet sasabog
Sent from my iPhone using Tapatalk

[CVT]

Disregard the photos in my first post.



Saan i connect yun dalawang wires coming out from the wall? Doon sa "Power" or isang wire sa "Power" then isang wire sa "switch"?

*cvt dito ka reply.

Wala naman mangyayari diba kahit madikit ko yun wires ng switch iilaw lang siya unlike wires ng outlet sasabog
Sent from my iPhone using Tapatalk

Sorry bro. I was driving.

Connect the two live wires on the terminals marked as "power" in the picture.... And then the other two wires going to the appliance on the terminals marked as "switch" in the picture..

You can test... Connect the two live wires on the terminals marked as "power"... And then connect two wires from the bulb to the terminals marked as "switch" in the picture.. If the timer turns on , -the bulb will light up... If the timer turns off, the bulb will turn off..

(The switch in this picture is now double pole double throw... Vs your first picture which is single pole single throw)

What appliance are you connecting?

[shadow]

Sorry bro. I was driving.

Connect the two live wires on the power... And then the other two wires going to the appliance on the switch.

You can test... Connect the two live wires on the power... And then connect two wires from the bulb to the switch... If they timer turns on the bulb will light...

Paano pag hinde sa appliances gagamitin? Celing light lang gusto ko gamitan? So yun dalawang wires from the wall sa power siya and not one wire on power-one wire in the switch? Bale ito na magiging switch instead of the regular light switch Diba?


Sent from my iPhone using Tapatalk

[lowslowbenz]

^

Saan mo nabili yan Shadow? And how much?

Thx.

[CVT]

Paano pag hinde sa appliances gagamitin? Celing light lang gusto ko gamitan? So yun dalawang wires from the wall sa power siya and not one wire on power-one wire in the switch? Bale ito na magiging switch instead of the regular light switch Diba?


Sent from my iPhone using Tapatalk

Bro ceiling light, mas okay iyong first picture dahil 1 wire lang dumaraan sa light switch... So single pole single throw dapat.

Yes, that would replace your light switch...

Again okay lang kung 110v AC makuha mo na timer switch... It will work here... Bababa Lang ang power rating, but it does not matter because the load is only lighting...

[shadow]

^

Saan mo nabili yan Shadow? And how much?

Thx.

Aliexpress. ₱300+ lang. Kaso hinde ko alam gamitin. [emoji23]

Nakakita ako niya sa sa US Home deppt Honeywell ang brand. Akala ko hinde pwede dito dahil 220v tayo


Sent from my iPhone using Tapatalk
